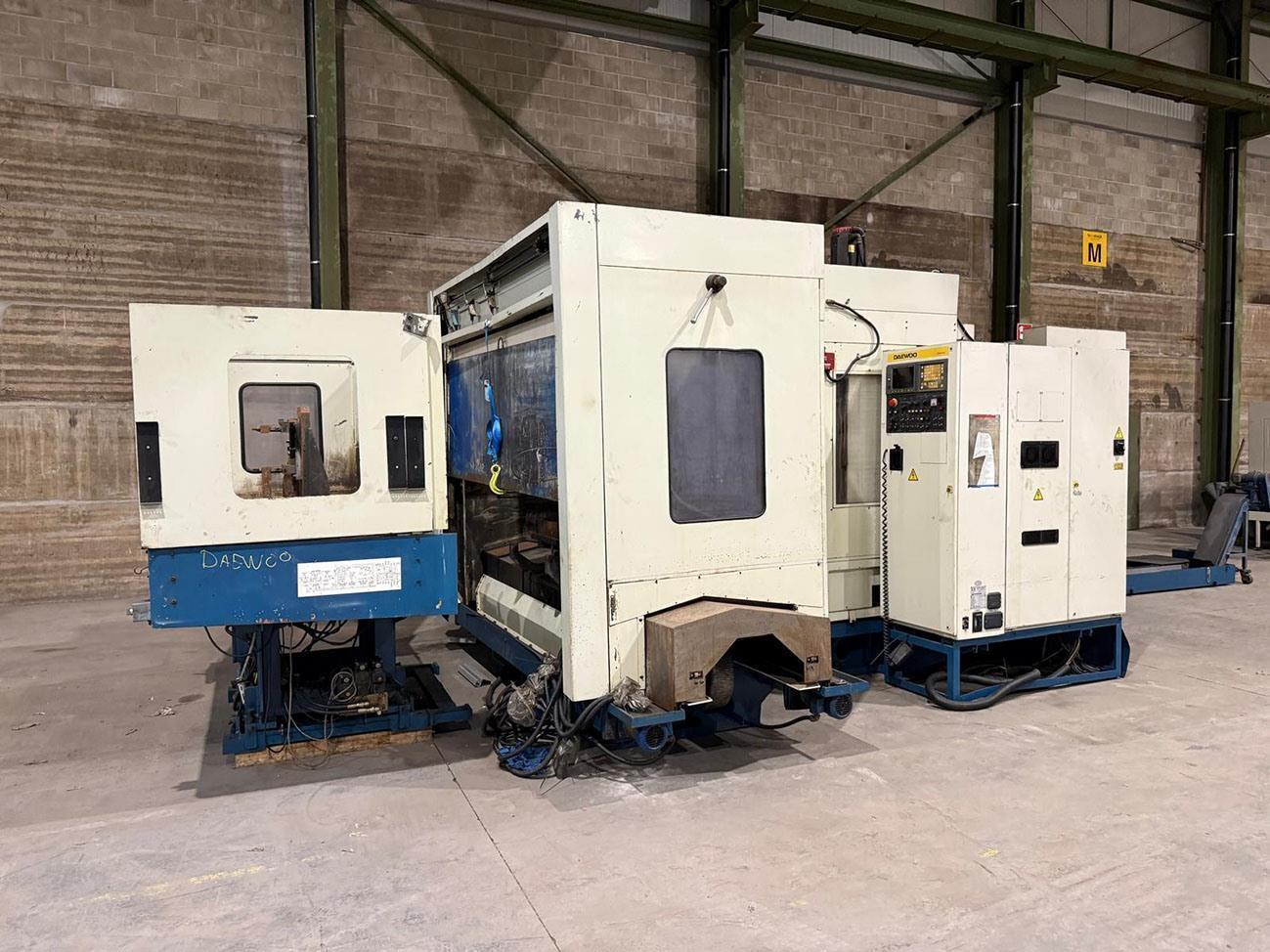

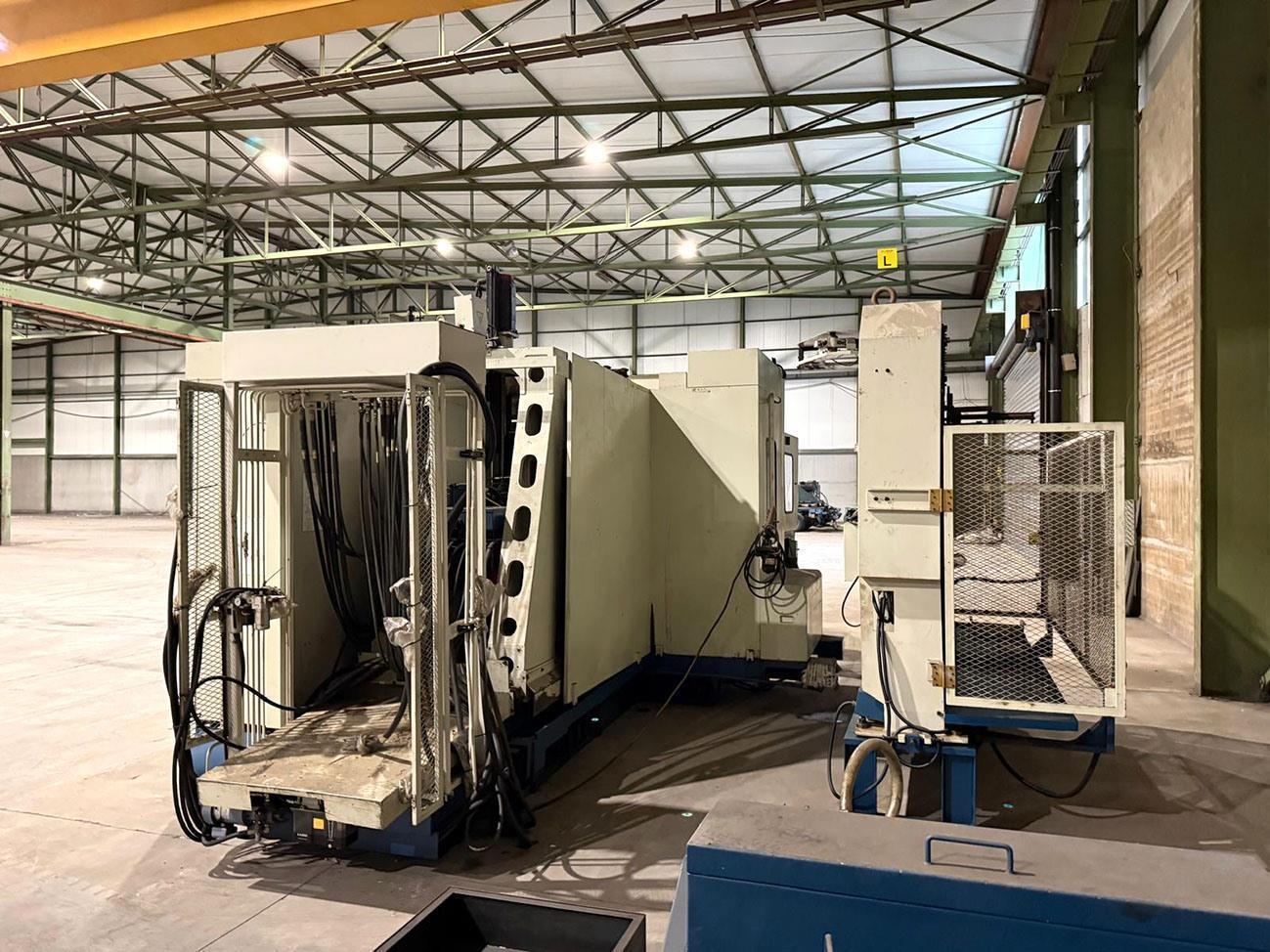

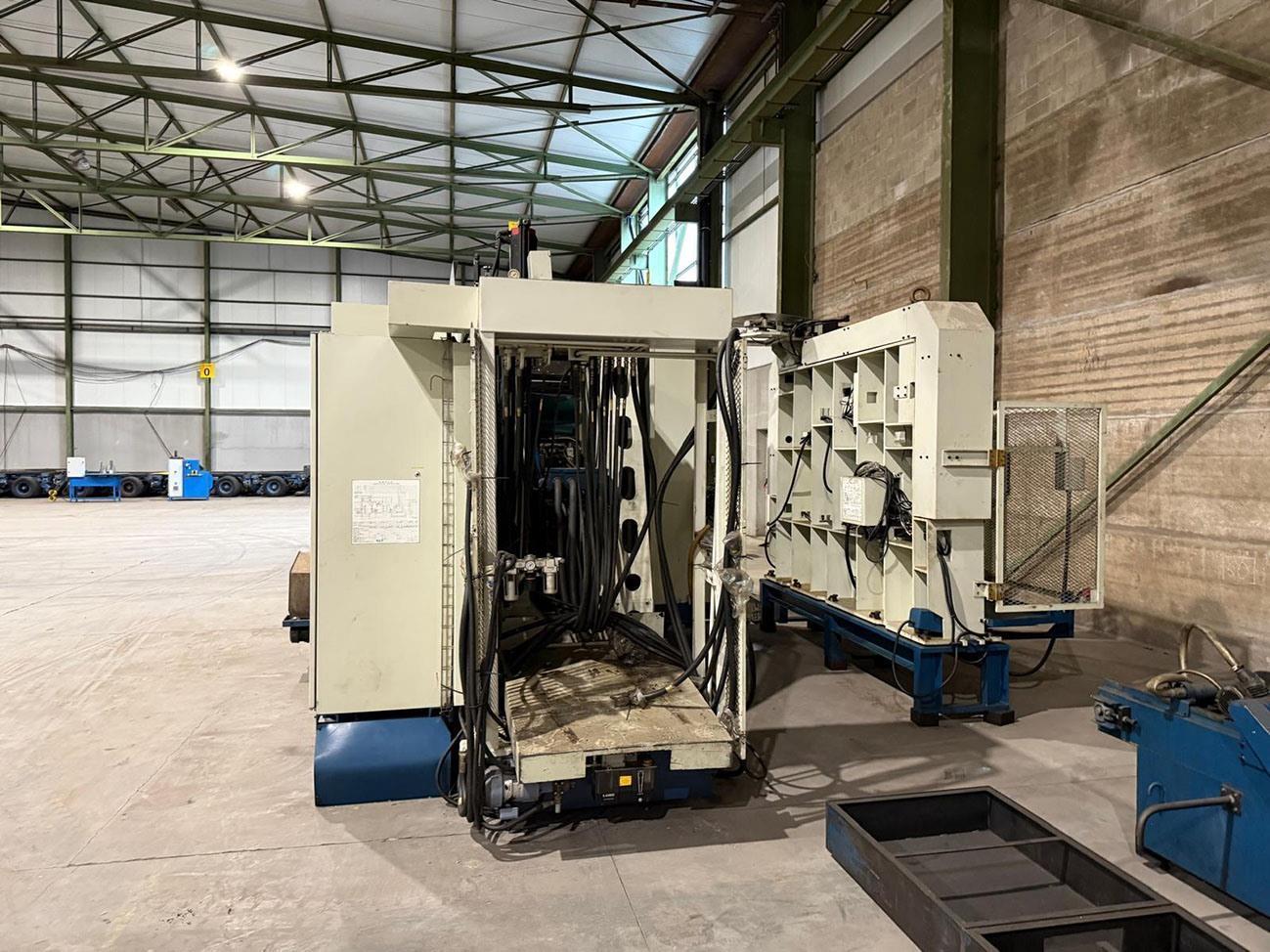

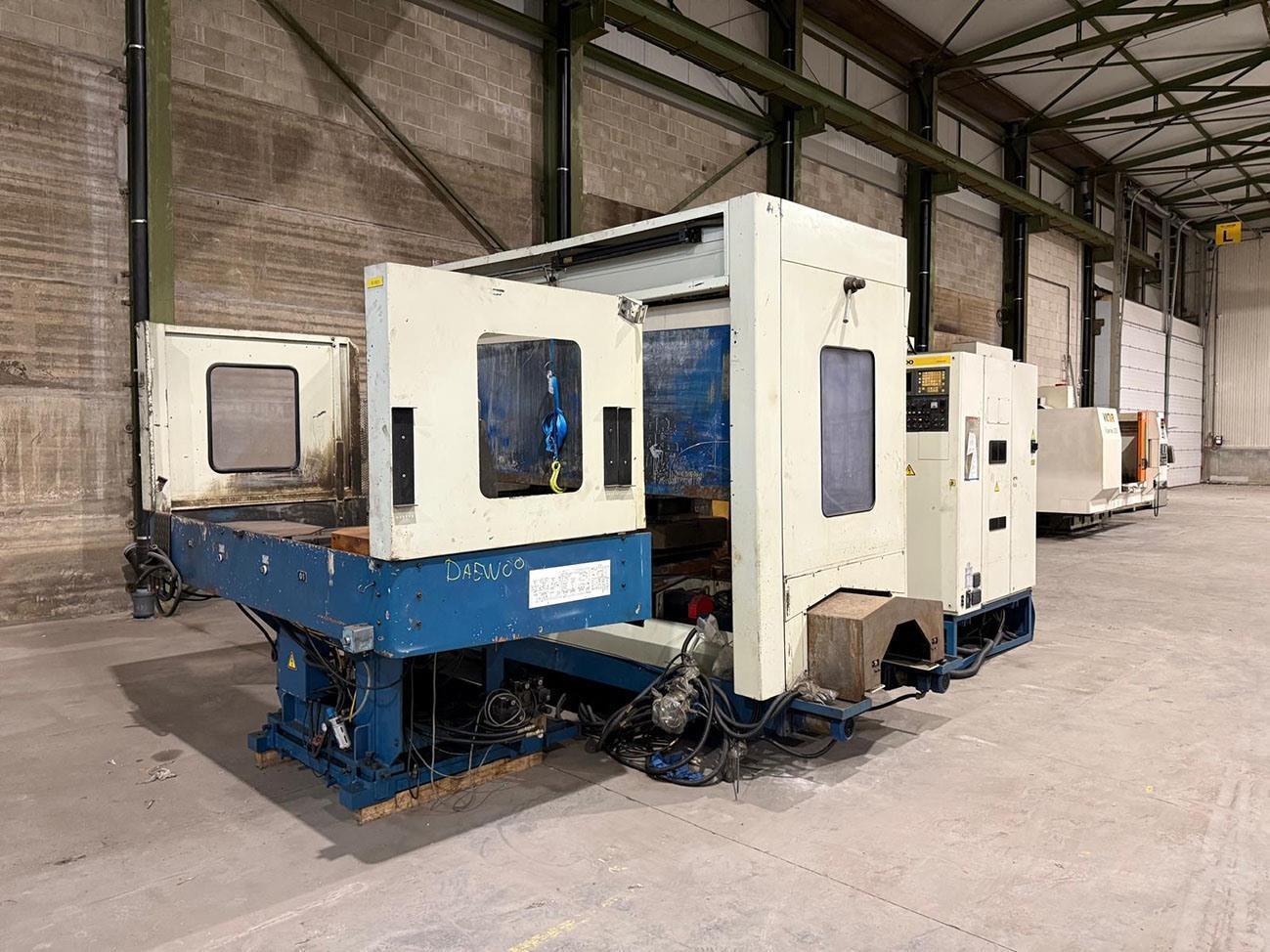

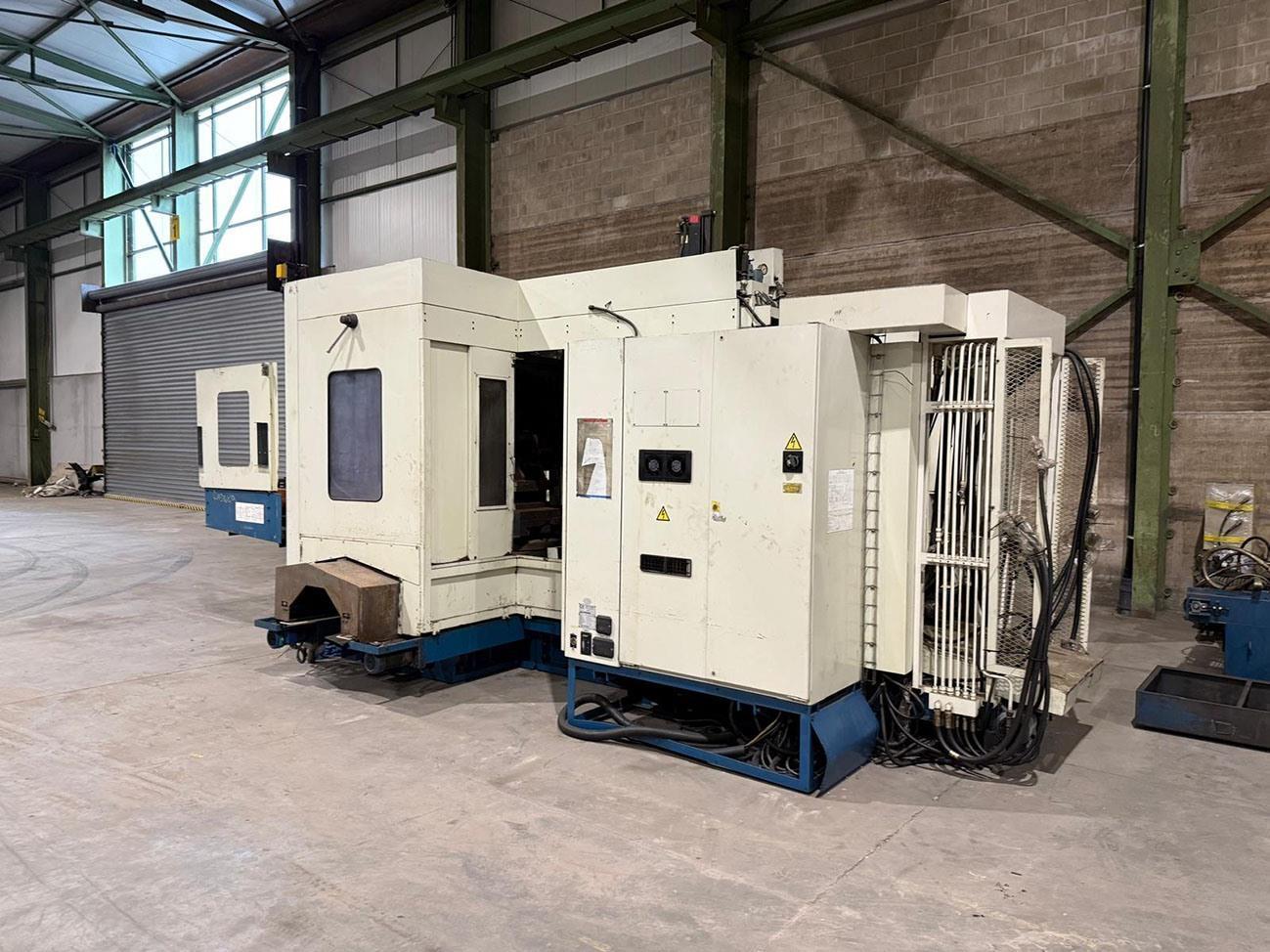

Horizontal machining centers Daewoo X: 1250 - Y: 1000 - Z: 1000 mm CNC

Name: Daewoo X: 1250 - Y: 1000 - Z: 1000 mm CNC
Brand: Daewoo
SKU: D.02 15901

Product added to your favorites

» Request a personalised quote

Technical information

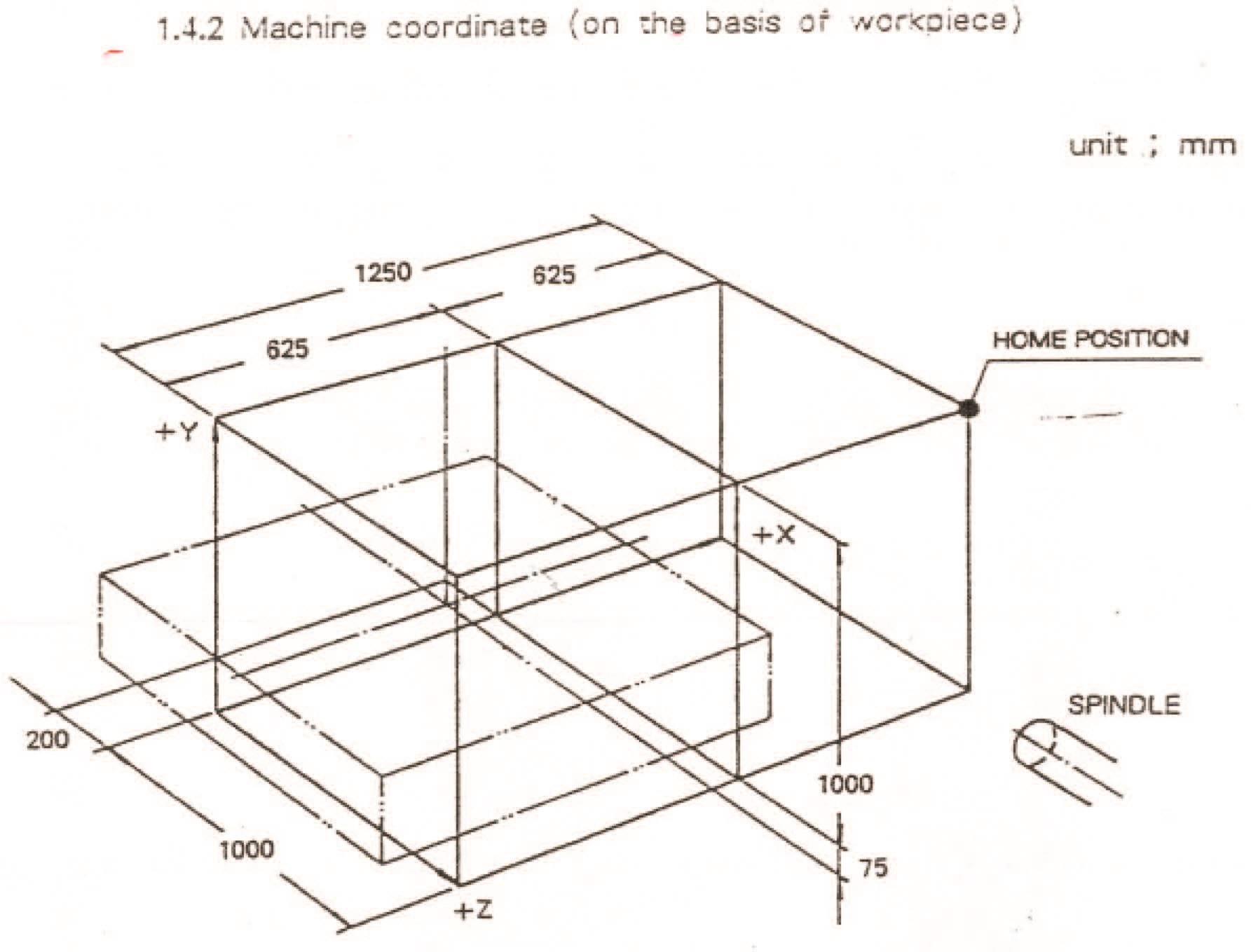

X-axes1250 mm
Y-axes1000 mm
Z-axes1000 mm
Table dimensions800 x 800 mm
Max weight on the table2000 kg
Admission in spindle (ISO)ISO 50
Power on the spindle25 kW

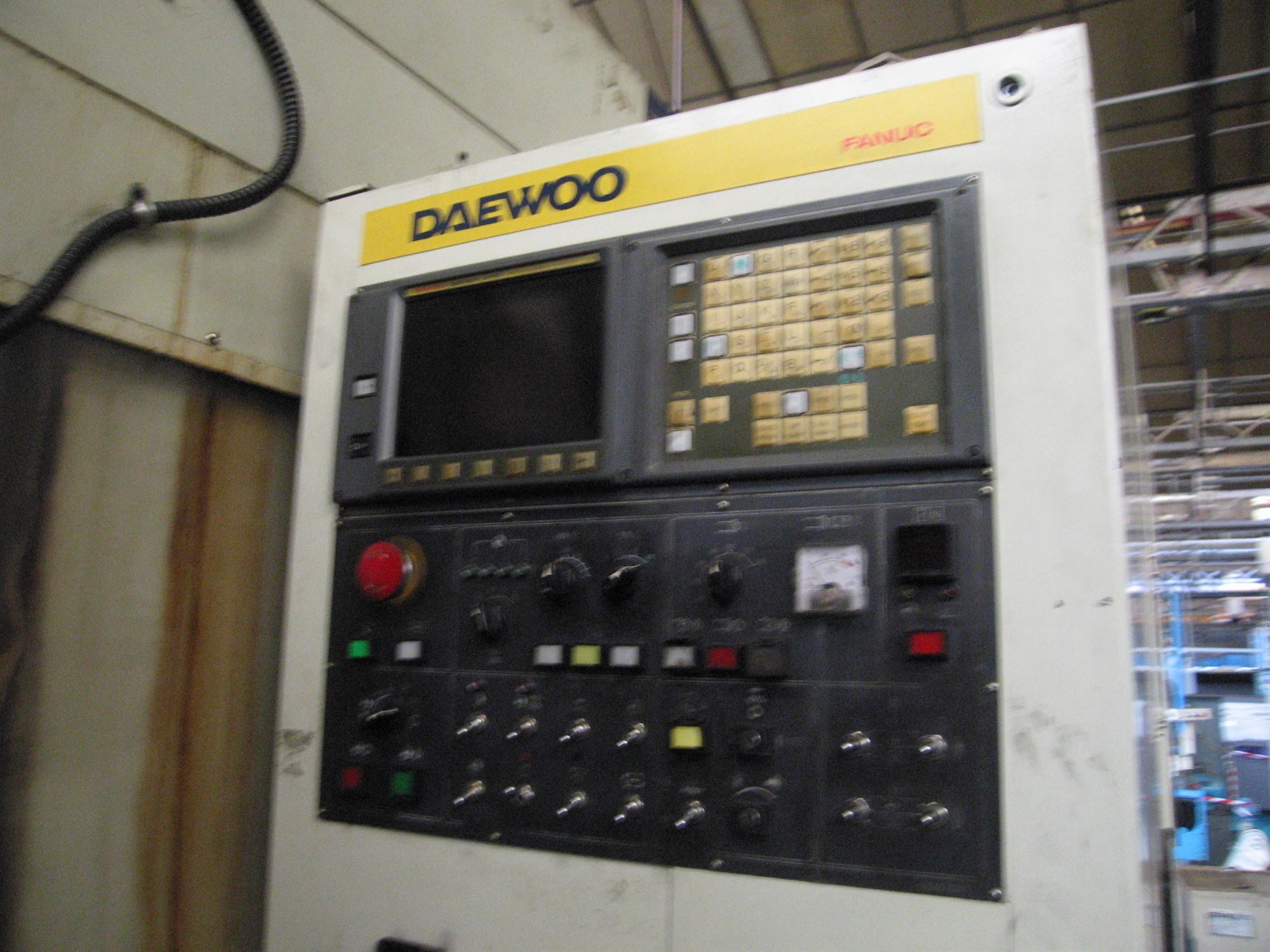

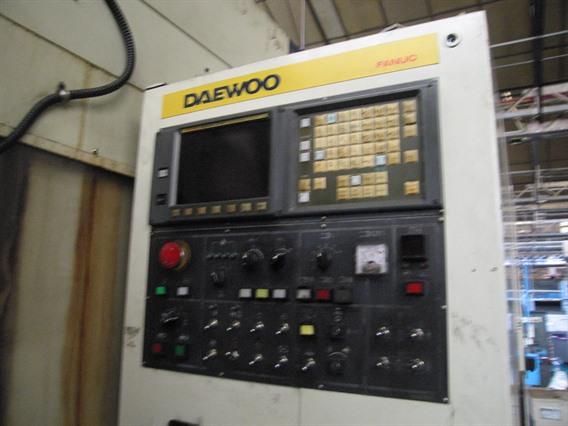

ControlFanuc OM

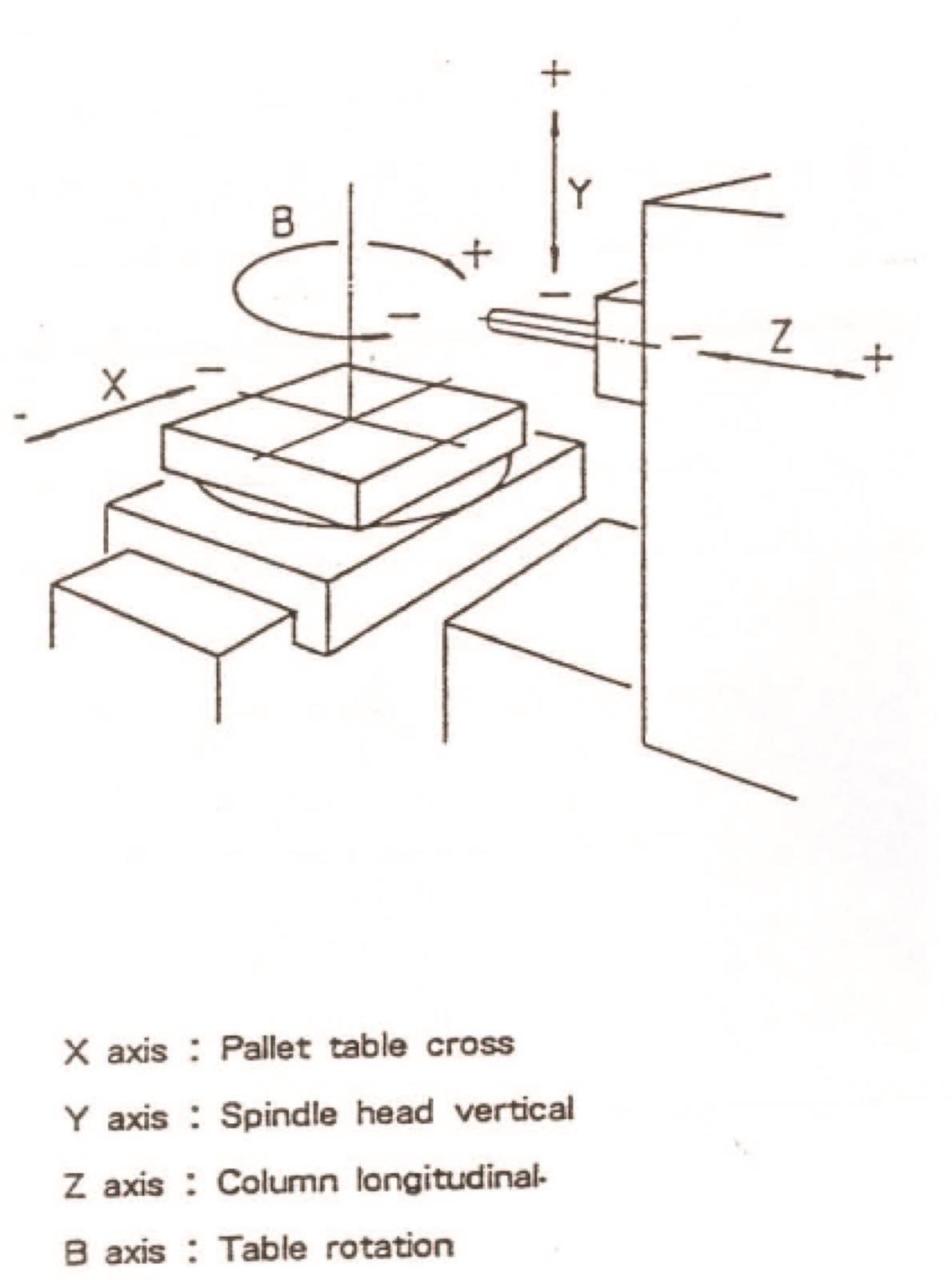

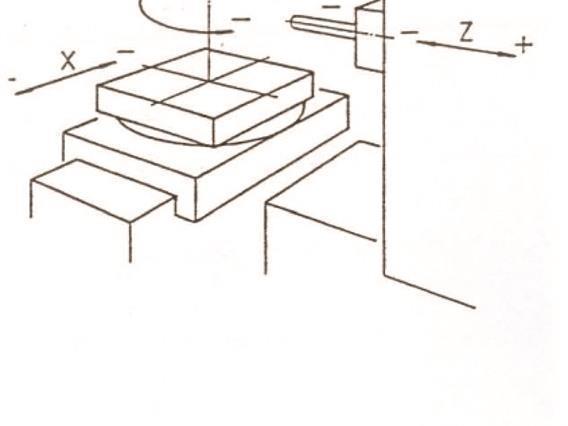

Number of axes4 axes: X,Y,Z,B
Toolstoreyes
Tools90 positions
Frequency 20 -> 4500 rpm
Number of pallets 2x
Power principal motor70 kva

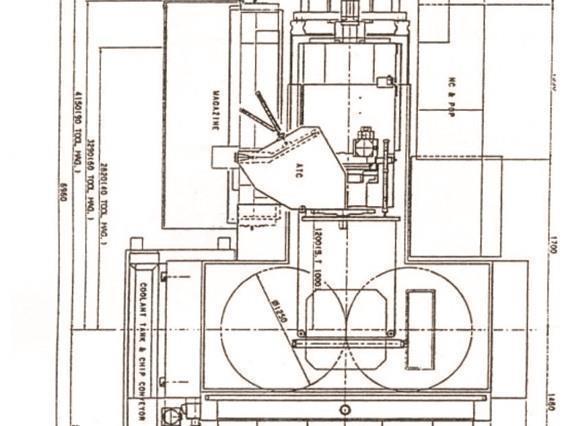

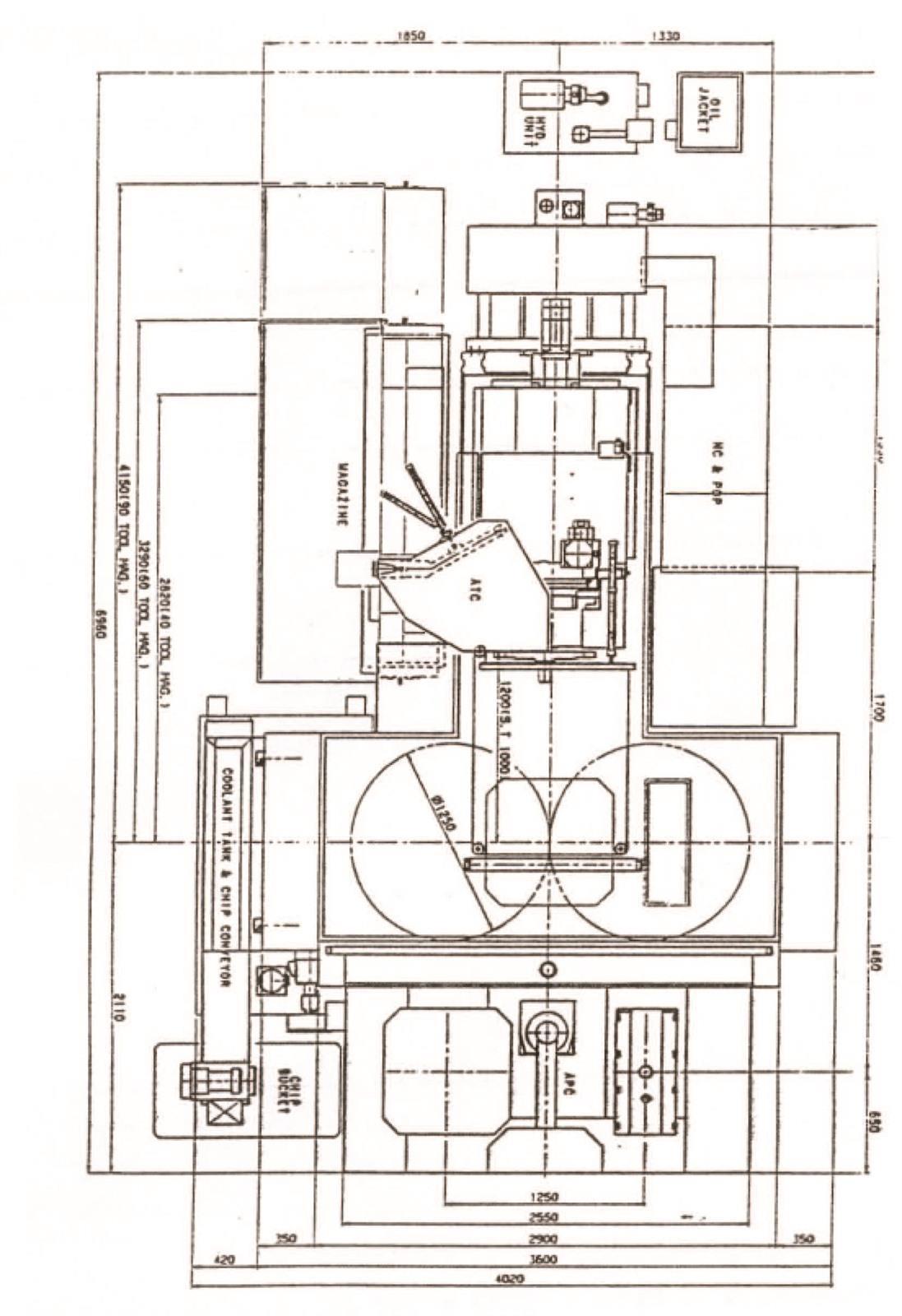

Length4100 mm
Depth6850 mm

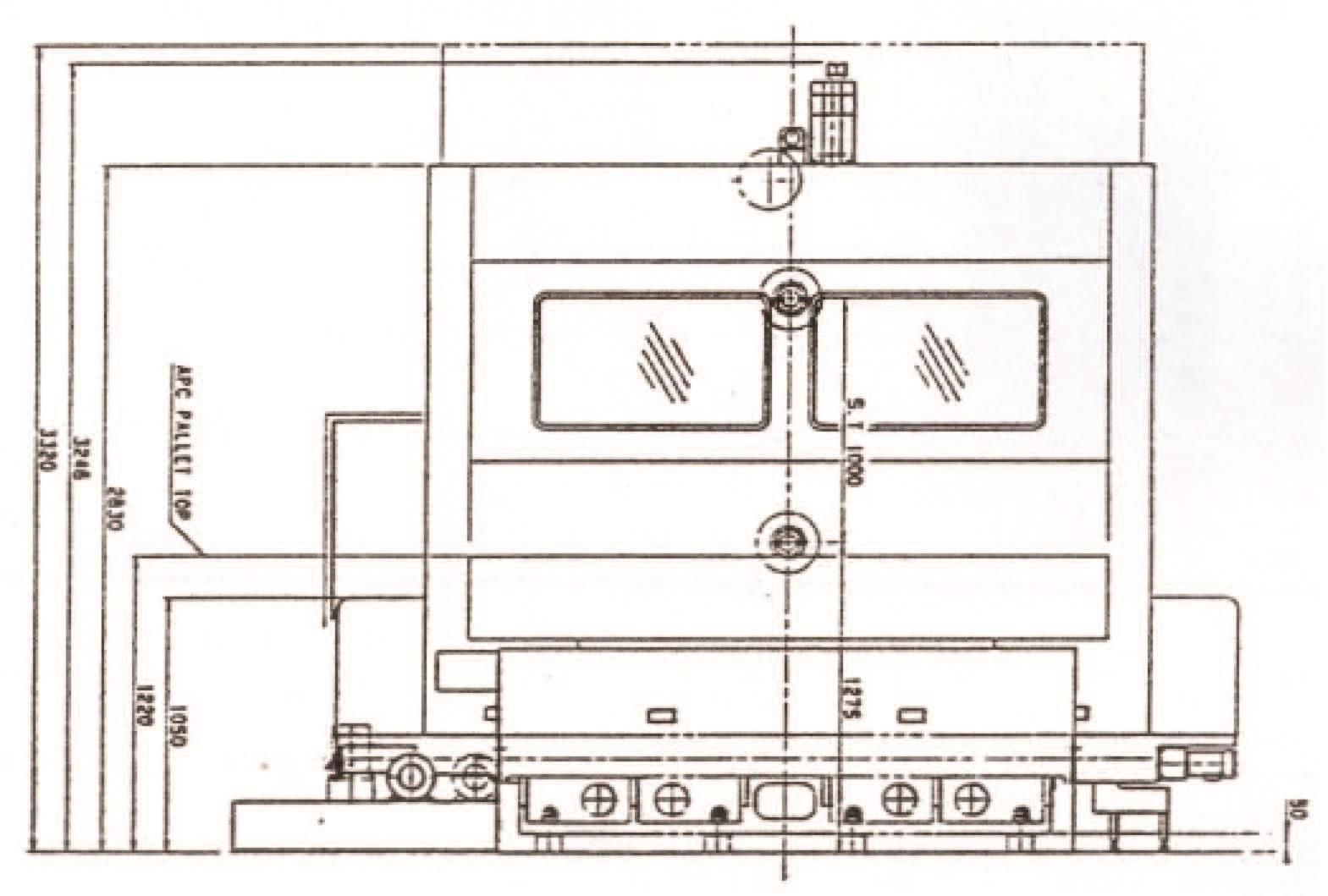

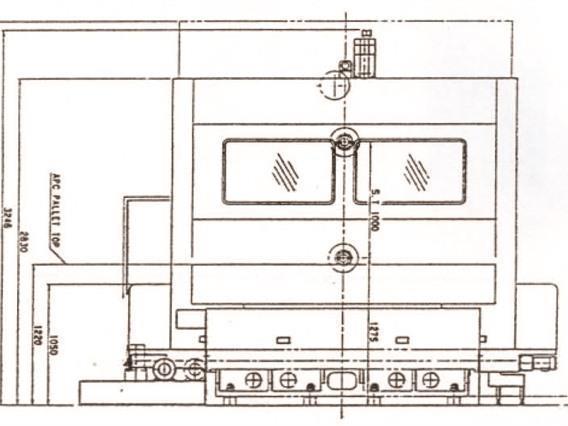

Height3240 mm
Weight18 ton
ACCESSORIESyes
Cooling-systemyes

Additional info

Type/Model: X: 1250 - Y: 1000 - Z: 1000 mm CNC
Stocknumber: D.02 15901
Main category: [D] Machining centres
Sub category: [D.02] Horizontal machining centers
Brand: Daewoo

» Request a personalised quote

Stocknumber: D.02 15901

Daewoo X: 1250 - Y: 1000 - Z: 1000 mm CNC

Download all pictures in ZIP
